Every part in a train system need to work well. This maintains the system secure and efficient. Railway spreading components are really important. They give support, link things, and conduct signals. Their high quality affects just how stable the train network is. When you get these parts for South Africa, South America, or Russia, you must locate good suppliers. To be effective, you require to recognize the local technical regulations. Right here are 5 vital top quality standards you need to always comply with.
1. Product Composition & Mechanical Properties: The Foundation of Top quality
The performance of cast iron depends on its details chemical composition and spreading process, and need to satisfy the international or local criteria of the target audience. A trusted railway casting parts maker will certainly offer complete product traceability.
1.1 Composition Requirements: Must follow requirements such as International Criteria (ISO), European Criteria (EN), Russian GOST requirements, or those typically made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of hazardous components like phosphorus and sulfur have to be purely controlled.
1.2 Mechanical Properties: Concentrate on tensile strength, return stamina, solidity, and prolongation. For ductile iron, refer to standards such as ISO 1083, EN 1563, or GOST 28394. Procurement needs to need suppliers to offer product certificates and mechanical examination reports that abide by the target audience’s requirements.

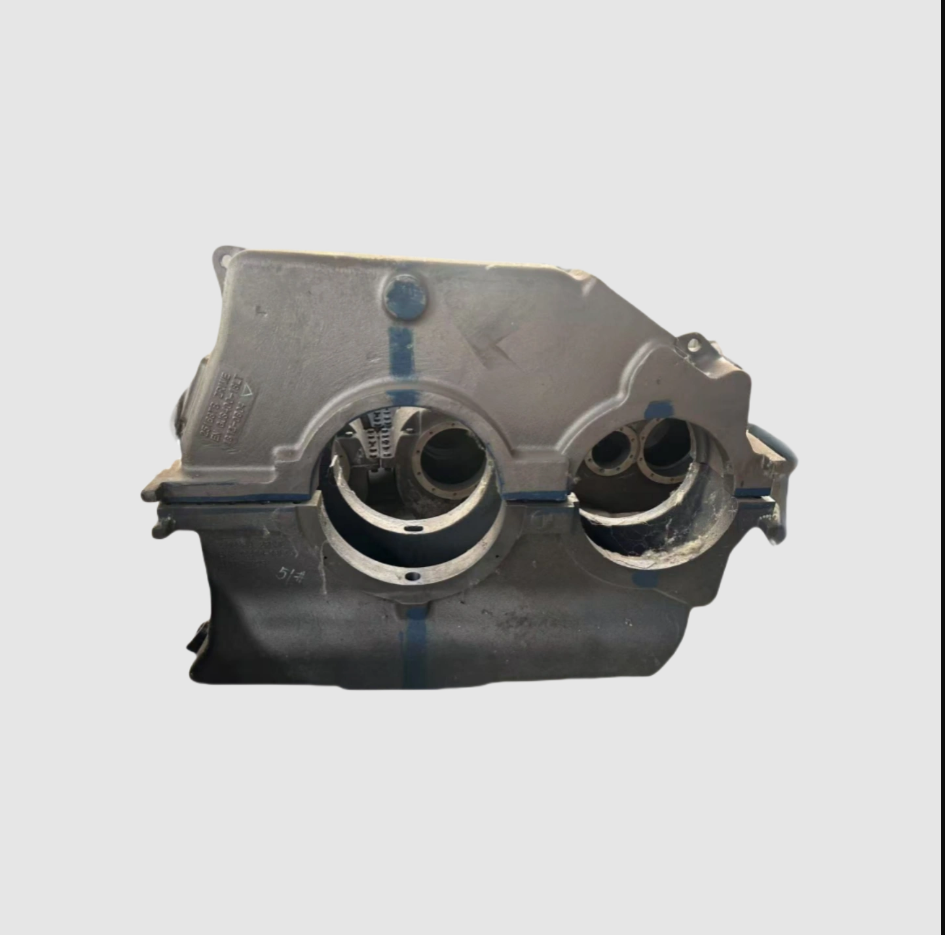

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Sure a “Perfect Fit”
Train jobs worldwide have strict demands for dimensional interchangeability; any type of inconsistency can impact system assimilation. Precision is a mark of superior railway spreading makers.
2.1 Essential Dimensions: All interface measurements and placing hole placements for all train casting components must be 100% inspected.
2.2 Tolerance Criteria: Should adhere to internationally acknowledged standards like ISO 2768, or specific tolerance requirements explicitly set with the client. For the Russian and CIS markets, unique attention must be paid to adhering to relevant resistance requirements in GOST 30893.
3. Limits on Casting Flaws: Eliminating Interior Hidden Dangers
The approval criteria for casting defects should be plainly defined in agreements and based upon internationally or regionally identified specifications. Leading train spreading parts manufacturer operations use strenuous non-destructive testing.
3.1 Surface Flaws: Specifications like ISO 8062 can be referenced for examining casting surface area top quality. Fractures, cool shuts, and various other issues impacting utility are not allowed.
3.2 Inner Defects: For essential load-bearing railway casting elements, non-destructive screening (e.g., ultrasonic, radiographic) ought to be done according to criteria like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear approval levels for flaws.
4. Metallographic Structure & Internal Top Quality
The tiny structure of the material is the crucial basis for evaluating whether its internal high quality meets the requirement. This is a crucial look for any type of expert railway spreading components producer.
4.1 Ductile Iron: The evaluation of nodularization price should comply with requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical homes meet the needs for use under intricate working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic evaluation report is an essential document for confirming the stability of the production procedure and need to comply with the pertinent worldwide or regional standards.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface High Quality: Withstanding Harsh Environments
Offered South Africa’s seaside high salinity, South America’s tropical rain forest humidity, and Russia’s extreme chilly and de-icing salts, anti-corrosion therapy for train casting elements is important.
5.1 Therapy Procedures: Define the sort of anti-corrosion procedure, such as hot-dip galvanizing (ISO 1461), epoxy layer, etc, and specify key indications like layer thickness, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Standards: Need to focus on details needs of the target market, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Standard) standards. A worldwide train casting manufacturers will certainly be familiar with these varied requirements.
