1. Material Characteristics and Structural Layout
1.1 Make-up and Crystalline Phases of Alumina

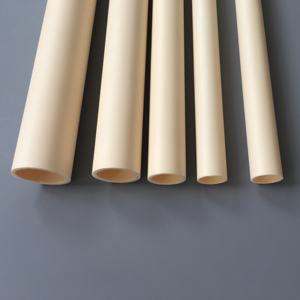

( Alumina Ceramic Tubes)
Alumina (Al ₂ O FIVE) ceramic tubes are mostly produced from high-purity aluminum oxide, with purity degrees generally varying from 90% to 99.8%, depending upon the designated application.
The leading crystalline phase in totally dense, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal framework and exceptional thermodynamic security.
This stage transition from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina happens above 1100 ° C and leads to a thick, interlacing microstructure that provides superior mechanical strength and chemical resistance.
Greater purity grades (≥ 99.5%) optimize solidity, wear resistance, and dielectric efficiency, while lower-purity formulations may integrate secondary phases like mullite or lustrous grain border phases to minimize price or tailor thermal expansion.
The capacity to control grain size, porosity, and phase composition throughout handling permits engineers to adjust alumina tubes for specific practical requirements throughout varied commercial domain names.
1.2 Mechanical, Thermal, and Electrical Quality
Alumina ceramic tubes display a special combination of physical homes that make them vital popular engineering atmospheres.
With a Vickers hardness exceeding 1500 HV, they are highly resistant to abrasion and disintegration, outmatching most metals and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, enabling architectural use under high mechanical tons, while flexural toughness usually ranges from 300 to 500 MPa, depending on density and surface finish.
Thermally, alumina keeps stability up to 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal growth (~ 8 ppm/K), contributing to outstanding thermal shock resistance when appropriately created.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to steels or aluminum nitride, it is sufficient for numerous high-temperature applications where electrical insulation and structural honesty are focused on.
Electrically, alumina is an impressive insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric strength (> 15 kV/mm), making it ideal for electrical feedthroughs, sensor real estates, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Developing Techniques
The production of alumina ceramic tubes includes sophisticated developing methods tailored to achieve precise dimensions, wall thickness harmony, and surface area top quality.
Typical techniques consist of extrusion, isostatic pushing, and slide spreading, each fit to various size arrays and performance needs.
Extrusion is extensively utilized for long, straight tubes with constant cross-sections, where a plasticized alumina paste is compelled through a die and cut to length before drying and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) applies consistent pressure from all directions to compact eco-friendly bodies, minimizing distortion and boosting density homogeneity.
Slip spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is optimal for complex or large-diameter geometries with variable wall density.
After developing, tubes undergo cautious drying out to stop breaking, adhered to by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Finishing and Quality Assurance
Post-sintering operations such as centerless grinding, lapping, and polishing are employed to accomplish limited resistances, smooth surface finishes, and accurate inner and outer sizes.
Resistances as tight as ± 0.01 mm are attainable for essential applications in semiconductor handling or logical instrumentation.
Surface roughness can be minimized to Ra < 0.1 µm, decreasing fragment capturing and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive testing techniques– consisting of ultrasonic evaluation, X-ray radiography, and color penetrant screening– make sure structural stability and lack of cracks or gaps.
Dimensional metrology using coordinate measuring machines (CMM) or laser scanning verifies compliance with style specifications, especially for customized or high-volume production runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of one of the most engaging benefits of alumina ceramic tubes is their ability to endure severe thermal and chemical problems where metals and polymers fall short.
They stay dimensionally steady and mechanically robust in continual service at temperatures above 1500 ° C, making them ideal for heater liners, thermocouple protection sheaths, and glowing heating unit tubes.
Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (other than hydrofluoric and hot phosphoric acid) makes it possible for use in metallurgical and chemical processing equipment.
In oxidizing and reducing atmospheres, alumina does not break down or catalyze undesirable responses, maintaining procedure pureness in semiconductor and glass production.
This chemical inertness additionally prevents contamination in high-purity liquid handling systems, consisting of those used in pharmaceutical and food processing industries.
3.2 Electric Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes function as insulating barriers that preserve circuit integrity under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lamps, where they include ionized gases at temperature levels surpassing 1000 ° C while holding up against electric possibilities of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas distribution components, resisting ion barrage and thermal biking without cracking or outgassing.
Their reduced dielectric loss and high arc resistance stop electric tracking and breakdown, making sure long life span in switchgear and power transmission elements.
These homes are critical in preserving procedure security and equipment integrity in advanced production and power systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Industrial Processing Systems
Alumina ceramic tubes are integral to a wide variety of commercial processes that demand resilience under severe problems.
In thermal processing, they function as safety sheaths for thermocouples and heating elements in kilns, heaters, and warm therapy devices, protecting sensitive components from harsh atmospheres and mechanical wear.
In fluid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables fast heating and cooling down cycles without failure, a vital advantage in cyclic industrial operations.
In glass manufacturing, alumina tubes assist liquified glass flows and support developing tools, withstanding erosion from thick, high-temperature melts.
4.2 Advanced Technologies and Future Integration
Past typical commercial usages, alumina tubes are finding new duties in cutting-edge technologies.
In semiconductor fabrication, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) reactors and ion implantation systems, where fragment generation and metallic contamination should be decreased.
In clinical devices, biocompatible alumina tubes act as insulating parts in medical tools, dental implants, and diagnostic sensing units.
Research study is discovering functionalized alumina tubes with embedded sensors or conductive traces for smart structural tracking in aerospace and power systems.
Additive production (3D printing) of alumina is emerging as an approach to create complicated tube geometries with internal networks or rated structures, allowing next-generation warmth exchangers and microreactors.
As sectors press toward greater efficiency, cleaner procedures, and higher integrity, alumina ceramic tubes continue to evolve as allowing components in the infrastructure of modern-day technology.
In recap, alumina ceramic tubes represent a mature yet dynamically progressing course of crafted materials, combining exceptional thermal, mechanical, and electric performance in a single not natural channel.
Their convenience throughout severe environments guarantees their continued importance in both established commercial systems and arising modern applications.
