1. Product Principles and Microstructural Qualities of Alumina Ceramics
1.1 Composition, Pureness Grades, and Crystallographic Properties

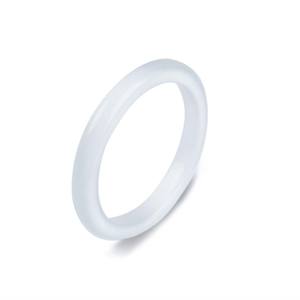

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O SIX), or aluminum oxide, is just one of the most widely used technological ceramics in industrial design as a result of its excellent balance of mechanical toughness, chemical stability, and cost-effectiveness.
When engineered into wear linings, alumina ceramics are commonly produced with pureness levels ranging from 85% to 99.9%, with greater pureness representing boosted hardness, use resistance, and thermal efficiency.
The dominant crystalline stage is alpha-alumina, which embraces a hexagonal close-packed (HCP) structure characterized by solid ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina ceramics consist of penalty, equiaxed grains whose size and distribution are regulated throughout sintering to optimize mechanical homes.
Grain sizes commonly range from submicron to several micrometers, with finer grains usually boosting fracture sturdiness and resistance to split proliferation under abrasive filling.
Minor additives such as magnesium oxide (MgO) are typically introduced in trace amounts to inhibit abnormal grain growth during high-temperature sintering, making sure consistent microstructure and dimensional security.
The resulting product shows a Vickers solidity of 1500– 2000 HV, substantially going beyond that of solidified steel (normally 600– 800 HV), making it exceptionally resistant to surface area degradation in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear linings are selected primarily for their outstanding resistance to rough, abrasive, and moving wear mechanisms common in bulk product managing systems.
They have high compressive toughness (approximately 3000 MPa), good flexural strength (300– 500 MPa), and excellent rigidity (Youthful’s modulus of ~ 380 Grade point average), allowing them to hold up against extreme mechanical loading without plastic deformation.
Although inherently brittle contrasted to metals, their reduced coefficient of friction and high surface area solidity decrease bit adhesion and lower wear rates by orders of size relative to steel or polymer-based options.
Thermally, alumina preserves architectural integrity as much as 1600 ° C in oxidizing ambiences, enabling use in high-temperature handling settings such as kiln feed systems, boiler ducting, and pyroprocessing equipment.

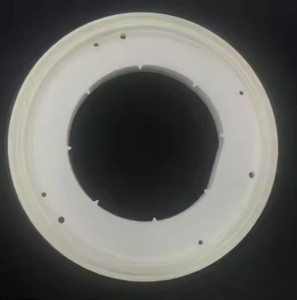

( Alumina Ceramic Wear Liners)
Its reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security throughout thermal biking, decreasing the threat of cracking as a result of thermal shock when effectively mounted.
Furthermore, alumina is electrically protecting and chemically inert to many acids, alkalis, and solvents, making it ideal for corrosive environments where metallic liners would break down rapidly.
These consolidated residential or commercial properties make alumina ceramics perfect for safeguarding vital facilities in mining, power generation, concrete manufacturing, and chemical handling industries.
2. Manufacturing Processes and Layout Integration Strategies
2.1 Shaping, Sintering, and Quality Control Protocols
The manufacturing of alumina ceramic wear linings involves a sequence of accuracy production actions made to attain high density, marginal porosity, and regular mechanical performance.
Raw alumina powders are processed with milling, granulation, and developing methods such as dry pressing, isostatic pushing, or extrusion, relying on the desired geometry– ceramic tiles, plates, pipes, or custom-shaped segments.
Green bodies are after that sintered at temperatures between 1500 ° C and 1700 ° C in air, promoting densification through solid-state diffusion and accomplishing family member densities surpassing 95%, usually approaching 99% of theoretical thickness.
Complete densification is critical, as residual porosity acts as tension concentrators and increases wear and fracture under solution problems.
Post-sintering procedures may include ruby grinding or washing to attain tight dimensional tolerances and smooth surface coatings that lessen rubbing and particle capturing.
Each set undertakes rigorous quality assurance, consisting of X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend testing to verify compliance with global requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Strategies and System Compatibility Factors To Consider
Reliable integration of alumina wear liners right into industrial equipment needs careful attention to mechanical accessory and thermal growth compatibility.
Common installation approaches consist of sticky bonding using high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.
Adhesive bonding is widely used for level or carefully bent surfaces, offering uniform stress distribution and vibration damping, while stud-mounted systems permit easy replacement and are favored in high-impact areas.
To accommodate differential thermal development in between alumina and metallic substratums (e.g., carbon steel), crafted voids, flexible adhesives, or compliant underlayers are integrated to prevent delamination or fracturing during thermal transients.
Designers need to additionally consider side defense, as ceramic floor tiles are prone to chipping at exposed edges; solutions include beveled sides, metal shadows, or overlapping tile setups.
Proper setup makes certain lengthy service life and maximizes the protective feature of the lining system.
3. Use Systems and Performance Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear liners master settings dominated by 3 primary wear devices: two-body abrasion, three-body abrasion, and particle erosion.
In two-body abrasion, tough bits or surfaces directly gouge the liner surface area, a typical incident in chutes, hoppers, and conveyor changes.
Three-body abrasion includes loosened fragments entraped between the lining and moving material, causing rolling and damaging activity that slowly eliminates material.
Erosive wear occurs when high-velocity bits impinge on the surface area, particularly in pneumatically-driven communicating lines and cyclone separators.
Due to its high solidity and low fracture durability, alumina is most effective in low-impact, high-abrasion scenarios.
It performs extremely well against siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be lowered by 10– 50 times contrasted to mild steel liners.
Nonetheless, in applications including repeated high-energy impact, such as primary crusher chambers, crossbreed systems integrating alumina tiles with elastomeric backings or metal shields are usually used to absorb shock and avoid crack.
3.2 Field Screening, Life Process Analysis, and Failure Mode Analysis
Performance assessment of alumina wear liners includes both lab testing and field monitoring.
Standard examinations such as the ASTM G65 completely dry sand rubber wheel abrasion examination supply comparative wear indices, while customized slurry erosion gears mimic site-specific conditions.
In commercial settings, put on price is typically gauged in mm/year or g/kWh, with service life estimates based upon first density and observed degradation.
Failing settings consist of surface sprucing up, micro-cracking, spalling at edges, and total floor tile dislodgement due to adhesive deterioration or mechanical overload.
Origin analysis frequently discloses installation mistakes, incorrect quality choice, or unexpected influence lots as primary contributors to premature failing.
Life cycle price analysis consistently demonstrates that despite greater first costs, alumina liners offer exceptional overall cost of possession as a result of extensive substitute intervals, minimized downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear liners are deployed across a broad range of commercial industries where product degradation positions operational and financial difficulties.
In mining and mineral handling, they safeguard transfer chutes, mill liners, hydrocyclones, and slurry pumps from abrasive slurries having quartz, hematite, and other hard minerals.
In nuclear power plant, alumina floor tiles line coal pulverizer air ducts, central heating boiler ash receptacles, and electrostatic precipitator elements exposed to fly ash erosion.
Concrete producers make use of alumina liners in raw mills, kiln inlet areas, and clinker conveyors to deal with the very rough nature of cementitious materials.
The steel market utilizes them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and moderate thermal loads is essential.
Also in less conventional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains offer durable security against chemically aggressive and fibrous materials.
4.2 Arising Fads: Composite Systems, Smart Liners, and Sustainability
Present study concentrates on enhancing the strength and capability of alumina wear systems with composite layout.
Alumina-zirconia (Al ₂ O FOUR-ZrO ₂) compounds take advantage of makeover toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al ₂ O SIX-TiC) grades supply boosted efficiency in high-temperature moving wear.
An additional technology involves installing sensing units within or below ceramic liners to check wear progression, temperature level, and impact frequency– enabling anticipating upkeep and electronic twin assimilation.
From a sustainability viewpoint, the extensive service life of alumina linings minimizes material consumption and waste generation, lining up with round economic situation principles in commercial procedures.
Recycling of invested ceramic liners right into refractory accumulations or building materials is likewise being checked out to reduce ecological impact.
To conclude, alumina ceramic wear linings represent a cornerstone of modern industrial wear defense technology.
Their extraordinary firmness, thermal stability, and chemical inertness, integrated with mature manufacturing and installation techniques, make them crucial in combating material degradation across hefty sectors.
As material science developments and digital tracking comes to be a lot more integrated, the next generation of wise, resistant alumina-based systems will even more enhance operational efficiency and sustainability in unpleasant atmospheres.
