1. Basic Chemistry and Crystallographic Design of Boron Carbide
1.1 Molecular Structure and Architectural Complexity

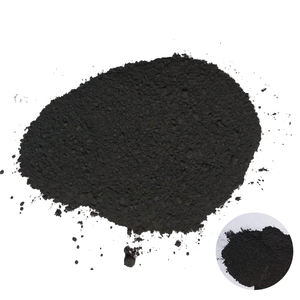

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of the most interesting and technologically essential ceramic products because of its special mix of extreme firmness, reduced thickness, and extraordinary neutron absorption capability.
Chemically, it is a non-stoichiometric compound largely composed of boron and carbon atoms, with an idealized formula of B FOUR C, though its actual make-up can range from B ₄ C to B ₁₀. ₅ C, mirroring a vast homogeneity array regulated by the alternative mechanisms within its complex crystal lattice.
The crystal framework of boron carbide comes from the rhombohedral system (room team R3̄m), defined by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– connected by direct C-B-C or C-C chains along the trigonal axis.
These icosahedra, each including 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently adhered via exceptionally solid B– B, B– C, and C– C bonds, contributing to its amazing mechanical rigidity and thermal stability.
The existence of these polyhedral units and interstitial chains presents structural anisotropy and inherent problems, which influence both the mechanical habits and digital buildings of the material.
Unlike simpler porcelains such as alumina or silicon carbide, boron carbide’s atomic style allows for substantial configurational versatility, enabling issue development and fee circulation that affect its efficiency under stress and irradiation.
1.2 Physical and Electronic Properties Occurring from Atomic Bonding
The covalent bonding network in boron carbide results in one of the greatest recognized firmness values among artificial materials– 2nd only to diamond and cubic boron nitride– usually varying from 30 to 38 Grade point average on the Vickers firmness scale.
Its thickness is remarkably reduced (~ 2.52 g/cm THREE), making it roughly 30% lighter than alumina and virtually 70% lighter than steel, a critical advantage in weight-sensitive applications such as individual shield and aerospace parts.
Boron carbide exhibits outstanding chemical inertness, standing up to assault by the majority of acids and alkalis at space temperature, although it can oxidize above 450 ° C in air, developing boric oxide (B ₂ O THREE) and co2, which might endanger structural honesty in high-temperature oxidative atmospheres.
It possesses a large bandgap (~ 2.1 eV), categorizing it as a semiconductor with potential applications in high-temperature electronic devices and radiation detectors.
Furthermore, its high Seebeck coefficient and low thermal conductivity make it a candidate for thermoelectric energy conversion, especially in extreme atmospheres where conventional materials fail.
(Boron Carbide Ceramic)
The material additionally demonstrates outstanding neutron absorption because of the high neutron capture cross-section of the ¹⁰ B isotope (around 3837 barns for thermal neutrons), providing it vital in nuclear reactor control rods, shielding, and spent gas storage space systems.
2. Synthesis, Handling, and Challenges in Densification
2.1 Industrial Production and Powder Fabrication Methods
Boron carbide is primarily generated with high-temperature carbothermal decrease of boric acid (H ₃ BO FIVE) or boron oxide (B TWO O ₃) with carbon sources such as petroleum coke or charcoal in electric arc heaters running above 2000 ° C.
The response proceeds as: 2B TWO O THREE + 7C → B FOUR C + 6CO, producing crude, angular powders that need considerable milling to accomplish submicron fragment dimensions appropriate for ceramic handling.
Different synthesis paths consist of self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted approaches, which supply better control over stoichiometry and bit morphology but are less scalable for industrial usage.
Due to its extreme hardness, grinding boron carbide into fine powders is energy-intensive and prone to contamination from milling media, requiring the use of boron carbide-lined mills or polymeric grinding aids to protect pureness.
The resulting powders have to be very carefully classified and deagglomerated to ensure consistent packing and efficient sintering.
2.2 Sintering Limitations and Advanced Combination Approaches
A significant challenge in boron carbide ceramic construction is its covalent bonding nature and reduced self-diffusion coefficient, which drastically restrict densification during standard pressureless sintering.
Also at temperature levels approaching 2200 ° C, pressureless sintering commonly produces ceramics with 80– 90% of academic density, leaving recurring porosity that breaks down mechanical toughness and ballistic efficiency.
To overcome this, progressed densification strategies such as warm pressing (HP) and warm isostatic pressing (HIP) are used.
Hot pushing applies uniaxial pressure (commonly 30– 50 MPa) at temperatures between 2100 ° C and 2300 ° C, advertising particle reformation and plastic contortion, making it possible for thickness exceeding 95%.
HIP further boosts densification by using isostatic gas pressure (100– 200 MPa) after encapsulation, eliminating closed pores and attaining near-full thickness with improved fracture sturdiness.
Additives such as carbon, silicon, or transition metal borides (e.g., TiB TWO, CrB ₂) are occasionally presented in little amounts to boost sinterability and prevent grain growth, though they might a little lower hardness or neutron absorption performance.
Despite these developments, grain limit weak point and innate brittleness continue to be persistent obstacles, particularly under dynamic loading conditions.
3. Mechanical Habits and Efficiency Under Extreme Loading Issues
3.1 Ballistic Resistance and Failing Devices
Boron carbide is extensively identified as a premier material for light-weight ballistic protection in body shield, car plating, and aircraft securing.
Its high solidity allows it to effectively wear down and warp inbound projectiles such as armor-piercing bullets and fragments, dissipating kinetic power through devices consisting of crack, microcracking, and local stage change.
However, boron carbide exhibits a sensation known as “amorphization under shock,” where, under high-velocity effect (commonly > 1.8 km/s), the crystalline structure collapses into a disordered, amorphous phase that lacks load-bearing capability, bring about catastrophic failing.
This pressure-induced amorphization, observed using in-situ X-ray diffraction and TEM studies, is credited to the malfunction of icosahedral systems and C-B-C chains under severe shear stress and anxiety.
Initiatives to mitigate this consist of grain improvement, composite design (e.g., B ₄ C-SiC), and surface covering with pliable metals to delay split breeding and have fragmentation.
3.2 Use Resistance and Commercial Applications
Past defense, boron carbide’s abrasion resistance makes it excellent for commercial applications entailing extreme wear, such as sandblasting nozzles, water jet cutting suggestions, and grinding media.
Its firmness dramatically goes beyond that of tungsten carbide and alumina, causing prolonged life span and decreased upkeep costs in high-throughput manufacturing settings.
Elements made from boron carbide can run under high-pressure rough circulations without rapid degradation, although care needs to be taken to prevent thermal shock and tensile stresses throughout procedure.
Its usage in nuclear environments also extends to wear-resistant components in gas handling systems, where mechanical durability and neutron absorption are both needed.
4. Strategic Applications in Nuclear, Aerospace, and Arising Technologies
4.1 Neutron Absorption and Radiation Protecting Equipments
Among the most essential non-military applications of boron carbide is in atomic energy, where it acts as a neutron-absorbing product in control rods, closure pellets, and radiation shielding frameworks.
Because of the high abundance of the ¹⁰ B isotope (naturally ~ 20%, but can be improved to > 90%), boron carbide efficiently records thermal neutrons by means of the ¹⁰ B(n, α)⁷ Li response, producing alpha fragments and lithium ions that are quickly included within the product.
This reaction is non-radioactive and produces marginal long-lived byproducts, making boron carbide more secure and much more steady than options like cadmium or hafnium.
It is made use of in pressurized water activators (PWRs), boiling water activators (BWRs), and research reactors, typically in the kind of sintered pellets, clad tubes, or composite panels.
Its security under neutron irradiation and ability to keep fission items boost activator safety and security and functional longevity.
4.2 Aerospace, Thermoelectrics, and Future Product Frontiers
In aerospace, boron carbide is being explored for use in hypersonic vehicle leading sides, where its high melting factor (~ 2450 ° C), low density, and thermal shock resistance deal benefits over metal alloys.
Its possibility in thermoelectric tools originates from its high Seebeck coefficient and low thermal conductivity, enabling direct conversion of waste heat into electrical power in severe environments such as deep-space probes or nuclear-powered systems.
Research study is likewise underway to establish boron carbide-based composites with carbon nanotubes or graphene to enhance durability and electric conductivity for multifunctional structural electronic devices.
In addition, its semiconductor buildings are being leveraged in radiation-hardened sensors and detectors for room and nuclear applications.
In recap, boron carbide porcelains represent a keystone product at the crossway of severe mechanical efficiency, nuclear engineering, and advanced manufacturing.
Its one-of-a-kind combination of ultra-high hardness, reduced density, and neutron absorption capacity makes it irreplaceable in protection and nuclear technologies, while continuous study remains to expand its energy right into aerospace, energy conversion, and next-generation compounds.
As refining strategies enhance and new composite styles arise, boron carbide will continue to be at the leading edge of materials advancement for the most demanding technological difficulties.
