1. Essential Structure and Architectural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Shift

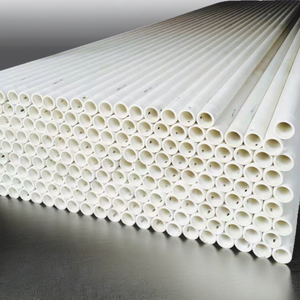

(Quartz Ceramics)
Quartz ceramics, additionally known as integrated silica or fused quartz, are a course of high-performance inorganic materials stemmed from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike standard porcelains that rely on polycrystalline frameworks, quartz porcelains are distinguished by their full absence of grain limits as a result of their lustrous, isotropic network of SiO four tetrahedra adjoined in a three-dimensional arbitrary network.
This amorphous structure is accomplished via high-temperature melting of all-natural quartz crystals or synthetic silica precursors, followed by fast cooling to avoid condensation.
The resulting material includes generally over 99.9% SiO TWO, with trace contaminations such as alkali steels (Na ⁺, K ⁺), aluminum, and iron kept at parts-per-million levels to preserve optical quality, electrical resistivity, and thermal efficiency.
The lack of long-range order gets rid of anisotropic habits, making quartz ceramics dimensionally steady and mechanically consistent in all instructions– a crucial advantage in precision applications.
1.2 Thermal Actions and Resistance to Thermal Shock
Among one of the most specifying functions of quartz ceramics is their remarkably low coefficient of thermal development (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero development emerges from the flexible Si– O– Si bond angles in the amorphous network, which can readjust under thermal stress and anxiety without damaging, allowing the material to stand up to rapid temperature changes that would certainly fracture conventional ceramics or metals.
Quartz porcelains can withstand thermal shocks surpassing 1000 ° C, such as straight immersion in water after warming to heated temperatures, without splitting or spalling.
This home makes them crucial in environments including repeated home heating and cooling cycles, such as semiconductor handling furnaces, aerospace components, and high-intensity lights systems.
Furthermore, quartz porcelains preserve structural honesty approximately temperature levels of roughly 1100 ° C in continuous solution, with temporary exposure tolerance approaching 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperature levels (~ 1600 ° C )and superb resistance to devitrification– though prolonged exposure above 1200 ° C can initiate surface condensation right into cristobalite, which may jeopardize mechanical strength as a result of quantity changes during stage changes.
2. Optical, Electrical, and Chemical Characteristics of Fused Silica Equipment
2.1 Broadband Openness and Photonic Applications
Quartz porcelains are renowned for their exceptional optical transmission throughout a wide spectral array, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is made it possible for by the lack of contaminations and the homogeneity of the amorphous network, which reduces light spreading and absorption.
High-purity artificial merged silica, created through fire hydrolysis of silicon chlorides, attains even higher UV transmission and is utilized in important applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damages limit– resisting breakdown under extreme pulsed laser irradiation– makes it perfect for high-energy laser systems made use of in blend research study and industrial machining.
Moreover, its low autofluorescence and radiation resistance make sure reliability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear tracking tools.
2.2 Dielectric Efficiency and Chemical Inertness
From an electrical point ofview, quartz ceramics are impressive insulators with volume resistivity exceeding 10 ¹⁸ Ω · cm at space temperature and a dielectric constant of about 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) ensures marginal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and shielding substratums in electronic settings up.
These properties remain secure over a broad temperature level array, unlike numerous polymers or conventional porcelains that degrade electrically under thermal stress.
Chemically, quartz porcelains display remarkable inertness to a lot of acids, including hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
However, they are susceptible to assault by hydrofluoric acid (HF) and solid alkalis such as warm salt hydroxide, which damage the Si– O– Si network.
This discerning sensitivity is manipulated in microfabrication processes where regulated etching of merged silica is needed.
In aggressive industrial environments– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz ceramics work as linings, view glasses, and reactor elements where contamination should be minimized.
3. Manufacturing Processes and Geometric Design of Quartz Ceramic Elements
3.1 Melting and Developing Strategies
The manufacturing of quartz porcelains entails numerous specialized melting approaches, each customized to certain purity and application demands.
Electric arc melting utilizes high-purity quartz sand thawed in a water-cooled copper crucible under vacuum or inert gas, producing large boules or tubes with exceptional thermal and mechanical buildings.
Fire combination, or combustion synthesis, includes melting silicon tetrachloride (SiCl four) in a hydrogen-oxygen flame, depositing fine silica particles that sinter into a transparent preform– this method generates the greatest optical quality and is made use of for artificial merged silica.
Plasma melting provides a different route, supplying ultra-high temperature levels and contamination-free handling for particular niche aerospace and defense applications.
When thawed, quartz porcelains can be shaped through accuracy spreading, centrifugal developing (for tubes), or CNC machining of pre-sintered spaces.
As a result of their brittleness, machining needs diamond devices and cautious control to prevent microcracking.
3.2 Accuracy Fabrication and Surface Area Ending Up
Quartz ceramic components are often produced right into complex geometries such as crucibles, tubes, poles, home windows, and customized insulators for semiconductor, photovoltaic or pv, and laser markets.
Dimensional precision is crucial, particularly in semiconductor production where quartz susceptors and bell jars should preserve exact alignment and thermal uniformity.
Surface area completing plays a vital role in performance; sleek surfaces decrease light scattering in optical components and minimize nucleation websites for devitrification in high-temperature applications.
Etching with buffered HF solutions can generate regulated surface appearances or eliminate harmed layers after machining.
For ultra-high vacuum (UHV) systems, quartz ceramics are cleaned up and baked to eliminate surface-adsorbed gases, making sure marginal outgassing and compatibility with delicate processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Production
Quartz ceramics are fundamental products in the fabrication of integrated circuits and solar cells, where they serve as heater tubes, wafer boats (susceptors), and diffusion chambers.
Their capability to hold up against high temperatures in oxidizing, reducing, or inert ambiences– combined with low metal contamination– guarantees process pureness and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz parts maintain dimensional stability and resist bending, protecting against wafer breakage and misalignment.
In solar manufacturing, quartz crucibles are made use of to grow monocrystalline silicon ingots by means of the Czochralski procedure, where their pureness directly influences the electrical high quality of the last solar batteries.
4.2 Use in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sterilization systems, quartz ceramic envelopes have plasma arcs at temperatures going beyond 1000 ° C while transmitting UV and noticeable light effectively.
Their thermal shock resistance stops failure throughout fast lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are utilized in radar home windows, sensing unit housings, and thermal defense systems because of their reduced dielectric constant, high strength-to-density ratio, and security under aerothermal loading.
In analytical chemistry and life scientific researches, fused silica veins are vital in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness stops sample adsorption and guarantees precise separation.
In addition, quartz crystal microbalances (QCMs), which rely upon the piezoelectric residential or commercial properties of crystalline quartz (distinctive from integrated silica), use quartz ceramics as protective housings and protecting assistances in real-time mass picking up applications.
To conclude, quartz porcelains represent an unique crossway of extreme thermal strength, optical transparency, and chemical pureness.
Their amorphous framework and high SiO two content enable performance in settings where conventional materials fall short, from the heart of semiconductor fabs to the side of space.
As technology advances toward greater temperature levels, greater precision, and cleaner processes, quartz ceramics will continue to act as a crucial enabler of advancement throughout science and market.
