1. Make-up and Architectural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Stability

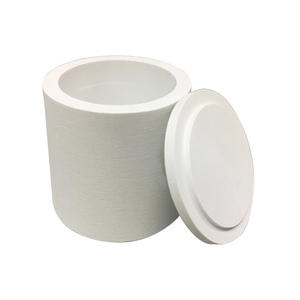

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, an artificial kind of silicon dioxide (SiO ₂) originated from the melting of natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts exceptional thermal shock resistance and dimensional security under quick temperature level changes.
This disordered atomic framework stops bosom along crystallographic airplanes, making fused silica less prone to splitting during thermal biking contrasted to polycrystalline ceramics.
The material exhibits a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst design materials, allowing it to stand up to extreme thermal slopes without fracturing– a crucial home in semiconductor and solar cell production.
Fused silica also keeps superb chemical inertness versus the majority of acids, liquified metals, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon purity and OH content) permits continual procedure at raised temperatures required for crystal growth and steel refining processes.
1.2 Pureness Grading and Trace Element Control
The efficiency of quartz crucibles is extremely dependent on chemical pureness, especially the concentration of metallic impurities such as iron, sodium, potassium, aluminum, and titanium.
Even trace amounts (parts per million level) of these contaminants can migrate into liquified silicon throughout crystal growth, weakening the electric properties of the resulting semiconductor product.
High-purity grades made use of in electronics making generally have over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and transition steels listed below 1 ppm.
Impurities stem from raw quartz feedstock or handling devices and are decreased via cautious selection of mineral sources and filtration strategies like acid leaching and flotation.
Furthermore, the hydroxyl (OH) web content in fused silica influences its thermomechanical actions; high-OH kinds use much better UV transmission but reduced thermal stability, while low-OH versions are favored for high-temperature applications due to minimized bubble development.
( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Layout
2.1 Electrofusion and Developing Strategies
Quartz crucibles are largely created using electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electrical arc furnace.
An electrical arc produced between carbon electrodes melts the quartz fragments, which strengthen layer by layer to create a seamless, thick crucible form.
This technique produces a fine-grained, homogeneous microstructure with very little bubbles and striae, important for uniform heat circulation and mechanical integrity.
Alternate methods such as plasma combination and flame fusion are used for specialized applications calling for ultra-low contamination or particular wall surface thickness profiles.
After casting, the crucibles undergo regulated cooling (annealing) to relieve inner anxieties and protect against spontaneous fracturing throughout solution.
Surface area finishing, including grinding and polishing, makes sure dimensional precision and reduces nucleation sites for undesirable crystallization during use.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying function of modern-day quartz crucibles, specifically those utilized in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
During production, the internal surface area is frequently treated to promote the development of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first heating.
This cristobalite layer acts as a diffusion barrier, reducing direct interaction in between molten silicon and the underlying integrated silica, thus lessening oxygen and metallic contamination.
Moreover, the presence of this crystalline phase improves opacity, boosting infrared radiation absorption and promoting more uniform temperature level distribution within the melt.
Crucible developers thoroughly stabilize the density and connection of this layer to stay clear of spalling or fracturing because of volume changes during phase shifts.
3. Functional Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are vital in the manufacturing of monocrystalline and multicrystalline silicon, serving as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into molten silicon kept in a quartz crucible and slowly pulled upward while revolving, allowing single-crystal ingots to create.
Although the crucible does not directly speak to the expanding crystal, communications in between molten silicon and SiO ₂ walls bring about oxygen dissolution into the thaw, which can impact service provider life time and mechanical stamina in finished wafers.
In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the regulated air conditioning of countless kgs of liquified silicon into block-shaped ingots.
Below, finishings such as silicon nitride (Si three N FOUR) are related to the inner surface area to stop bond and facilitate easy release of the strengthened silicon block after cooling.
3.2 Destruction Systems and Service Life Limitations
In spite of their toughness, quartz crucibles degrade during repeated high-temperature cycles as a result of several interrelated mechanisms.
Thick circulation or contortion occurs at extended exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric integrity.
Re-crystallization of fused silica into cristobalite produces inner anxieties as a result of volume development, potentially creating fractures or spallation that pollute the melt.
Chemical erosion emerges from decrease reactions in between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), generating unpredictable silicon monoxide that gets away and compromises the crucible wall.
Bubble development, driven by caught gases or OH groups, even more compromises architectural stamina and thermal conductivity.
These destruction paths restrict the variety of reuse cycles and necessitate specific procedure control to make best use of crucible life expectancy and product return.
4. Arising Developments and Technological Adaptations
4.1 Coatings and Compound Alterations
To boost efficiency and longevity, progressed quartz crucibles include functional finishes and composite structures.
Silicon-based anti-sticking layers and drugged silica coverings improve launch features and decrease oxygen outgassing during melting.
Some suppliers integrate zirconia (ZrO TWO) particles right into the crucible wall surface to enhance mechanical toughness and resistance to devitrification.
Research study is continuous right into totally clear or gradient-structured crucibles developed to optimize convected heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Obstacles
With boosting demand from the semiconductor and photovoltaic markets, sustainable use of quartz crucibles has become a priority.
Used crucibles polluted with silicon residue are difficult to reuse because of cross-contamination dangers, leading to significant waste generation.
Efforts concentrate on establishing recyclable crucible linings, boosted cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for secondary applications.
As tool efficiencies require ever-higher product purity, the function of quartz crucibles will continue to progress with development in materials science and procedure engineering.
In summary, quartz crucibles represent a critical interface between raw materials and high-performance digital items.
Their distinct combination of purity, thermal strength, and architectural layout allows the fabrication of silicon-based technologies that power contemporary computing and renewable energy systems.
