1. Material Basics and Crystal Chemistry
1.1 Composition and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its phenomenal firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in piling series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically pertinent.
The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) result in a high melting factor (~ 2700 ° C), low thermal growth (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have an indigenous lustrous stage, adding to its security in oxidizing and harsh atmospheres as much as 1600 ° C.
Its broad bandgap (2.3– 3.3 eV, depending on polytype) also enhances it with semiconductor properties, making it possible for twin use in structural and electronic applications.
1.2 Sintering Obstacles and Densification Approaches
Pure SiC is extremely hard to densify because of its covalent bonding and reduced self-diffusion coefficients, requiring making use of sintering help or sophisticated processing strategies.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating permeable carbon preforms with liquified silicon, forming SiC in situ; this technique returns near-net-shape elements with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert atmosphere, achieving > 99% academic thickness and exceptional mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al ₂ O TWO– Y ₂ O SIX, forming a transient fluid that enhances diffusion however may decrease high-temperature toughness as a result of grain-boundary stages.
Warm pressing and spark plasma sintering (SPS) provide quick, pressure-assisted densification with great microstructures, perfect for high-performance parts requiring marginal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Toughness, Hardness, and Put On Resistance
Silicon carbide porcelains exhibit Vickers firmness worths of 25– 30 Grade point average, 2nd only to ruby and cubic boron nitride among engineering products.
Their flexural strength usually varies from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m ONE/ TWO– modest for ceramics yet boosted through microstructural design such as whisker or fiber support.
The mix of high firmness and flexible modulus (~ 410 Grade point average) makes SiC extremely resistant to rough and abrasive wear, surpassing tungsten carbide and solidified steel in slurry and particle-laden atmospheres.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC parts show service lives a number of times longer than conventional options.
Its reduced density (~ 3.1 g/cm TWO) more adds to wear resistance by minimizing inertial forces in high-speed turning components.
2.2 Thermal Conductivity and Stability
One of SiC’s most distinguishing features is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline forms, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most steels except copper and aluminum.
This property allows efficient warm dissipation in high-power digital substratums, brake discs, and heat exchanger parts.
Combined with reduced thermal growth, SiC exhibits superior thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high values suggest durability to fast temperature level modifications.

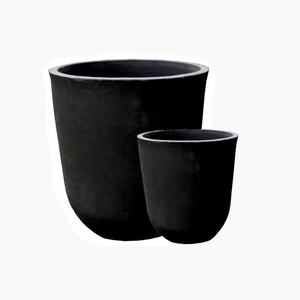

For instance, SiC crucibles can be warmed from room temperature level to 1400 ° C in minutes without breaking, a feat unattainable for alumina or zirconia in similar conditions.
In addition, SiC maintains strength as much as 1400 ° C in inert environments, making it perfect for furnace fixtures, kiln furniture, and aerospace elements subjected to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Actions in Oxidizing and Reducing Atmospheres
At temperature levels listed below 800 ° C, SiC is very secure in both oxidizing and decreasing settings.
Over 800 ° C in air, a safety silica (SiO ₂) layer types on the surface via oxidation (SiC + 3/2 O ₂ → SiO TWO + CARBON MONOXIDE), which passivates the material and slows additional destruction.
Nonetheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, bring about increased recession– an essential factor to consider in generator and burning applications.
In reducing atmospheres or inert gases, SiC remains stable as much as its decay temperature level (~ 2700 ° C), without any phase modifications or strength loss.
This security makes it ideal for liquified metal handling, such as light weight aluminum or zinc crucibles, where it stands up to wetting and chemical strike far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO FOUR).
It shows exceptional resistance to alkalis as much as 800 ° C, though long term direct exposure to molten NaOH or KOH can trigger surface area etching using formation of soluble silicates.
In liquified salt atmospheres– such as those in focused solar power (CSP) or nuclear reactors– SiC shows superior deterioration resistance compared to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical procedure equipment, consisting of valves, liners, and warmth exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Power, Defense, and Production
Silicon carbide porcelains are essential to various high-value commercial systems.
In the power sector, they function as wear-resistant liners in coal gasifiers, components in nuclear fuel cladding (SiC/SiC composites), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density ratio supplies superior defense against high-velocity projectiles compared to alumina or boron carbide at reduced expense.
In production, SiC is made use of for accuracy bearings, semiconductor wafer taking care of elements, and rough blowing up nozzles as a result of its dimensional stability and purity.
Its usage in electric lorry (EV) inverters as a semiconductor substrate is quickly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Continuous research study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile habits, improved durability, and maintained stamina above 1200 ° C– excellent for jet engines and hypersonic automobile leading sides.
Additive production of SiC by means of binder jetting or stereolithography is advancing, making it possible for complicated geometries previously unattainable via standard forming approaches.
From a sustainability point of view, SiC’s longevity minimizes substitute frequency and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created via thermal and chemical healing processes to recover high-purity SiC powder.
As markets push towards higher performance, electrification, and extreme-environment operation, silicon carbide-based ceramics will certainly remain at the forefront of advanced products engineering, linking the space between architectural durability and useful convenience.
