Boron Carbide Ceramics: Revealing the Science, Characteristic, and Revolutionary Applications of an Ultra-Hard Advanced Material
1. Intro to Boron Carbide: A Product at the Extremes
Boron carbide (B ₄ C) stands as one of one of the most exceptional artificial products recognized to modern-day products scientific research, distinguished by its position among the hardest substances in the world, went beyond only by ruby and cubic boron nitride.

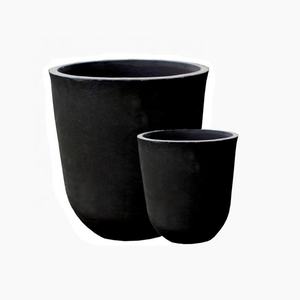

(Boron Carbide Ceramic)
First manufactured in the 19th century, boron carbide has evolved from a lab inquisitiveness right into an essential part in high-performance design systems, defense technologies, and nuclear applications.
Its one-of-a-kind mix of extreme firmness, low density, high neutron absorption cross-section, and superb chemical stability makes it important in environments where standard materials stop working.
This article gives a thorough yet accessible expedition of boron carbide porcelains, diving into its atomic structure, synthesis techniques, mechanical and physical properties, and the large range of sophisticated applications that leverage its exceptional features.
The objective is to bridge the void between clinical understanding and sensible application, supplying readers a deep, organized understanding right into exactly how this amazing ceramic product is forming modern-day innovation.
2. Atomic Framework and Essential Chemistry
2.1 Crystal Latticework and Bonding Characteristics
Boron carbide crystallizes in a rhombohedral structure (area team R3m) with a complicated system cell that suits a variable stoichiometry, normally ranging from B FOUR C to B ₁₀. ₅ C.
The fundamental foundation of this framework are 12-atom icosahedra composed primarily of boron atoms, linked by three-atom direct chains that cover the crystal latticework.
The icosahedra are extremely secure clusters due to solid covalent bonding within the boron network, while the inter-icosahedral chains– usually including C-B-C or B-B-B setups– play a crucial role in establishing the material’s mechanical and digital properties.
This unique architecture causes a material with a high level of covalent bonding (over 90%), which is straight responsible for its extraordinary solidity and thermal stability.
The visibility of carbon in the chain sites improves structural stability, but inconsistencies from suitable stoichiometry can introduce defects that affect mechanical efficiency and sinterability.
(Boron Carbide Ceramic)
2.2 Compositional Irregularity and Defect Chemistry
Unlike lots of ceramics with dealt with stoichiometry, boron carbide exhibits a broad homogeneity range, permitting substantial variation in boron-to-carbon ratio without interfering with the total crystal framework.
This flexibility allows customized residential or commercial properties for specific applications, though it additionally introduces difficulties in handling and performance uniformity.
Problems such as carbon shortage, boron openings, and icosahedral distortions prevail and can influence firmness, fracture strength, and electrical conductivity.
For instance, under-stoichiometric compositions (boron-rich) often tend to show greater hardness yet minimized fracture sturdiness, while carbon-rich versions may reveal better sinterability at the expenditure of solidity.
Understanding and controlling these defects is a vital emphasis in innovative boron carbide research, specifically for enhancing efficiency in armor and nuclear applications.
3. Synthesis and Handling Techniques
3.1 Main Manufacturing Methods
Boron carbide powder is largely produced with high-temperature carbothermal reduction, a procedure in which boric acid (H FOUR BO ₃) or boron oxide (B TWO O FOUR) is reacted with carbon sources such as petroleum coke or charcoal in an electric arc heating system.
The reaction proceeds as complies with:
B TWO O FOUR + 7C → 2B ₄ C + 6CO (gas)
This procedure takes place at temperatures going beyond 2000 ° C, needing substantial energy input.
The resulting crude B ₄ C is after that grated and purified to eliminate residual carbon and unreacted oxides.
Different methods include magnesiothermic reduction, laser-assisted synthesis, and plasma arc synthesis, which provide finer control over particle size and pureness but are typically limited to small-scale or customized manufacturing.
3.2 Challenges in Densification and Sintering
Among the most substantial obstacles in boron carbide ceramic manufacturing is accomplishing complete densification as a result of its strong covalent bonding and reduced self-diffusion coefficient.
Traditional pressureless sintering commonly leads to porosity degrees above 10%, severely compromising mechanical toughness and ballistic efficiency.
To overcome this, advanced densification strategies are used:
Warm Pushing (HP): Entails simultaneous application of warmth (generally 2000– 2200 ° C )and uniaxial pressure (20– 50 MPa) in an inert ambience, yielding near-theoretical density.
Hot Isostatic Pressing (HIP): Applies high temperature and isotropic gas stress (100– 200 MPa), eliminating internal pores and boosting mechanical stability.
Spark Plasma Sintering (SPS): Uses pulsed direct existing to rapidly warm the powder compact, making it possible for densification at lower temperatures and shorter times, protecting fine grain framework.
Additives such as carbon, silicon, or shift steel borides are usually introduced to advertise grain limit diffusion and enhance sinterability, though they should be thoroughly managed to stay clear of derogatory solidity.
4. Mechanical and Physical Properties
4.1 Outstanding Hardness and Wear Resistance
Boron carbide is renowned for its Vickers solidity, usually ranging from 30 to 35 Grade point average, putting it amongst the hardest well-known materials.
This extreme hardness converts right into superior resistance to unpleasant wear, making B FOUR C perfect for applications such as sandblasting nozzles, cutting devices, and use plates in mining and boring devices.
The wear device in boron carbide entails microfracture and grain pull-out instead of plastic contortion, a characteristic of fragile ceramics.
However, its reduced fracture sturdiness (generally 2.5– 3.5 MPa · m ¹ / TWO) makes it vulnerable to crack proliferation under impact loading, requiring careful layout in dynamic applications.
4.2 Low Thickness and High Particular Toughness
With a thickness of about 2.52 g/cm TWO, boron carbide is among the lightest structural porcelains offered, offering a substantial benefit in weight-sensitive applications.
This low thickness, incorporated with high compressive stamina (over 4 GPa), results in a phenomenal certain strength (strength-to-density ratio), critical for aerospace and defense systems where minimizing mass is vital.
For instance, in personal and automobile armor, B ₄ C supplies remarkable protection each weight contrasted to steel or alumina, enabling lighter, a lot more mobile safety systems.
4.3 Thermal and Chemical Stability
Boron carbide displays superb thermal security, maintaining its mechanical residential properties as much as 1000 ° C in inert ambiences.
It has a high melting point of around 2450 ° C and a low thermal expansion coefficient (~ 5.6 × 10 ⁻⁶/ K), contributing to good thermal shock resistance.
Chemically, it is very immune to acids (other than oxidizing acids like HNO FIVE) and liquified metals, making it suitable for usage in extreme chemical settings and atomic power plants.
Nevertheless, oxidation becomes substantial above 500 ° C in air, forming boric oxide and carbon dioxide, which can deteriorate surface integrity gradually.
Protective coatings or environmental protection are typically needed in high-temperature oxidizing conditions.
5. Key Applications and Technological Effect
5.1 Ballistic Protection and Shield Solutions
Boron carbide is a cornerstone material in modern-day light-weight shield because of its unequaled combination of hardness and reduced thickness.
It is extensively made use of in:
Ceramic plates for body shield (Degree III and IV defense).
Lorry shield for armed forces and police applications.
Aircraft and helicopter cockpit protection.
In composite shield systems, B ₄ C ceramic tiles are commonly backed by fiber-reinforced polymers (e.g., Kevlar or UHMWPE) to absorb residual kinetic energy after the ceramic layer cracks the projectile.
In spite of its high firmness, B FOUR C can undergo “amorphization” under high-velocity effect, a phenomenon that limits its effectiveness versus extremely high-energy dangers, prompting recurring research study into composite adjustments and crossbreed ceramics.
5.2 Nuclear Engineering and Neutron Absorption
One of boron carbide’s most crucial functions remains in atomic power plant control and safety systems.
Because of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons), B ₄ C is utilized in:
Control poles for pressurized water reactors (PWRs) and boiling water reactors (BWRs).
Neutron securing parts.
Emergency shutdown systems.
Its ability to soak up neutrons without significant swelling or deterioration under irradiation makes it a favored product in nuclear environments.
Nonetheless, helium gas generation from the ¹⁰ B(n, α)seven Li reaction can result in interior stress buildup and microcracking with time, demanding cautious style and tracking in long-term applications.
5.3 Industrial and Wear-Resistant Components
Beyond defense and nuclear markets, boron carbide locates considerable usage in industrial applications requiring severe wear resistance:
Nozzles for unpleasant waterjet cutting and sandblasting.
Linings for pumps and valves handling harsh slurries.
Cutting devices for non-ferrous products.
Its chemical inertness and thermal security enable it to do dependably in hostile chemical processing atmospheres where metal tools would certainly wear away swiftly.
6. Future Potential Customers and Research Frontiers
The future of boron carbide ceramics depends on overcoming its fundamental constraints– particularly low crack strength and oxidation resistance– with progressed composite style and nanostructuring.
Existing research study directions include:
Advancement of B ₄ C-SiC, B FOUR C-TiB ₂, and B FOUR C-CNT (carbon nanotube) composites to boost strength and thermal conductivity.
Surface area alteration and layer innovations to boost oxidation resistance.
Additive production (3D printing) of facility B ₄ C parts making use of binder jetting and SPS strategies.
As products science continues to develop, boron carbide is poised to play an even higher duty in next-generation technologies, from hypersonic car elements to advanced nuclear blend reactors.
Finally, boron carbide porcelains represent a peak of crafted material performance, integrating severe firmness, low density, and unique nuclear residential properties in a single compound.
Through continual innovation in synthesis, handling, and application, this remarkable material continues to push the boundaries of what is feasible in high-performance design.
