1. Product Science and Structural Properties
1.1 Crystal Structure and Chemical Stability

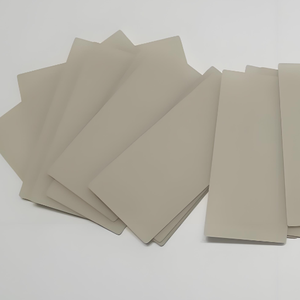

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of alternating layers of light weight aluminum and nitrogen atoms bonded via strong covalent communications.
This durable atomic arrangement enhances AlN with extraordinary thermal security, keeping architectural integrity approximately 2200 ° C in inert atmospheres and standing up to decay under severe thermal biking.
Unlike alumina (Al two O FIVE), AlN is chemically inert to molten metals and many responsive gases, making it appropriate for extreme atmospheres such as semiconductor handling chambers and high-temperature furnaces.
Its high resistance to oxidation– developing just a slim safety Al ₂ O six layer at surface upon direct exposure to air– guarantees lasting dependability without considerable degradation of bulk residential or commercial properties.
Furthermore, AlN displays outstanding electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric strength over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Digital Attributes
The most defining feature of aluminum nitride is its superior thermal conductivity, normally varying from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times more than that of alumina (≈ 30 W/(m · K)).
This efficiency stems from the low atomic mass of nitrogen and light weight aluminum, combined with solid bonding and marginal factor issues, which enable effective phonon transport with the latticework.
Nevertheless, oxygen impurities are especially destructive; also trace quantities (above 100 ppm) replacement for nitrogen websites, creating light weight aluminum jobs and scattering phonons, thus drastically reducing thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or straight nitridation are important to accomplish ideal warm dissipation.
Despite being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it important in sensors and acoustic wave devices, while its vast bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Fabrication Procedures and Manufacturing Challenges

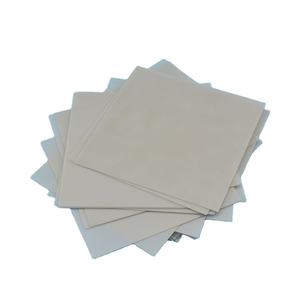

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, generally achieved via reactions such as Al Two O FOUR + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum metal: 2Al + N TWO → 2AlN.
The resulting powder must be carefully milled and doped with sintering help like Y ₂ O TWO, CaO, or uncommon planet oxides to advertise densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives create transient liquid phases that boost grain limit diffusion, allowing complete densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich settings can additionally decrease oxygen web content by getting rid of intergranular oxides, thereby restoring peak thermal conductivity.
Accomplishing uniform microstructure with regulated grain dimension is essential to balance mechanical stamina, thermal performance, and manufacturability.
2.2 Substrate Forming and Metallization
As soon as sintered, AlN ceramics are precision-ground and washed to fulfill tight dimensional resistances needed for digital packaging, frequently to micrometer-level monotony.
Through-hole boring, laser cutting, and surface area patterning allow assimilation right into multilayer plans and crossbreed circuits.
A critical step in substratum manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are adhered to AlN surfaces at raised temperature levels in a regulated atmosphere, forming a solid interface appropriate for high-current applications.
Different methods like active metal brazing (AMB) make use of titanium-containing solders to improve bond and thermal fatigue resistance, specifically under duplicated power biking.
Appropriate interfacial engineering ensures low thermal resistance and high mechanical reliability in operating devices.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Monitoring in Power Electronic Devices
AlN substrates master handling warm produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers made use of in electric cars, renewable resource inverters, and telecoms facilities.
Effective heat removal avoids localized hotspots, reduces thermal anxiety, and extends device lifetime by minimizing electromigration and delamination risks.
Compared to typical Al ₂ O ₃ substratums, AlN makes it possible for smaller plan dimensions and higher power densities because of its superior thermal conductivity, enabling developers to push performance borders without compromising dependability.
In LED lighting and laser diodes, where joint temperature level directly affects effectiveness and color stability, AlN substrates significantly enhance luminescent result and operational lifespan.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) also carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical anxiety during thermal cycling.
3.2 Electrical and Mechanical Reliability
Past thermal performance, AlN provides low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) throughout a broad frequency range, making it excellent for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents moisture access, removing corrosion threats in moist atmospheres– an essential advantage over organic substratums.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and solidity (HV ≈ 1200), making certain resilience throughout handling, assembly, and area procedure.
These attributes jointly add to improved system integrity, decreased failure prices, and reduced complete price of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Equipments
AlN ceramic substratums are currently common in innovative power modules for industrial motor drives, wind and solar inverters, and onboard chargers in electric and hybrid automobiles.
In aerospace and protection, they support radar systems, electronic warfare units, and satellite communications, where performance under extreme problems is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, additionally gain from AlN’s radiation resistance and signal integrity.
As electrification fads increase throughout transport and energy fields, need for AlN substratums continues to expand, driven by the need for portable, effective, and trustworthy power electronic devices.
4.2 Arising Integration and Lasting Development
Future innovations focus on incorporating AlN right into three-dimensional product packaging styles, embedded passive components, and heterogeneous integration platforms integrating Si, SiC, and GaN gadgets.
Research study right into nanostructured AlN films and single-crystal substratums aims to additional boost thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Efforts to minimize production prices with scalable powder synthesis, additive manufacturing of complicated ceramic structures, and recycling of scrap AlN are obtaining momentum to improve sustainability.
In addition, modeling devices making use of limited element evaluation (FEA) and artificial intelligence are being employed to optimize substrate layout for particular thermal and electric tons.
To conclude, light weight aluminum nitride ceramic substratums represent a foundation modern technology in contemporary electronic devices, distinctly bridging the gap in between electrical insulation and exceptional thermal transmission.
Their duty in making it possible for high-efficiency, high-reliability power systems emphasizes their critical relevance in the ongoing evolution of digital and energy innovations.
