Intro to Light Weight Aluminum Nitride Ceramics

Light weight aluminum nitride (AlN) is a high-performance ceramic material that has actually gained extensive acknowledgment for its remarkable thermal conductivity, electrical insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal framework, AlN displays a special combination of residential or commercial properties that make it one of the most excellent substrate product for applications in electronics, optoelectronics, power components, and high-temperature environments. Its capacity to successfully dissipate warmth while keeping exceptional dielectric toughness placements AlN as a superior alternative to standard ceramic substrates such as alumina and beryllium oxide. This write-up discovers the fundamental characteristics of light weight aluminum nitride ceramics, explores manufacture strategies, and highlights its critical roles throughout innovative technical domains.

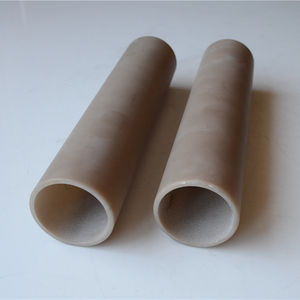

(Aluminum Nitride Ceramics)

Crystal Framework and Basic Residence

The efficiency of aluminum nitride as a substrate material is mainly determined by its crystalline framework and intrinsic physical residential properties. AlN embraces a wurtzite-type lattice made up of rotating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– typically surpassing 180 W/(m · K), with some high-purity examples achieving over 320 W/(m · K). This worth dramatically goes beyond those of various other extensively utilized ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

Along with its thermal efficiency, AlN possesses a vast bandgap of roughly 6.2 eV, resulting in excellent electric insulation properties also at high temperatures. It likewise shows reduced thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an ideal match for semiconductor gadget product packaging. Moreover, AlN shows high chemical inertness and resistance to thaw metals, enhancing its viability for rough settings. These mixed characteristics develop AlN as a top candidate for high-power digital substrates and thermally handled systems.

Construction and Sintering Technologies

Making top quality light weight aluminum nitride porcelains calls for accurate powder synthesis and sintering methods to accomplish thick microstructures with very little contaminations. As a result of its covalent bonding nature, AlN does not quickly densify through traditional pressureless sintering. Consequently, sintering help such as yttrium oxide (Y TWO O TWO), calcium oxide (CaO), or rare planet aspects are generally added to advertise liquid-phase sintering and boost grain border diffusion.

The construction procedure normally begins with the carbothermal reduction of aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are then milled, formed using methods like tape casting or injection molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pressing or trigger plasma sintering (SPS) can further improve thickness and thermal conductivity by decreasing porosity and advertising grain positioning. Advanced additive production strategies are likewise being discovered to produce complex-shaped AlN parts with customized thermal management abilities.

Application in Digital Packaging and Power Modules

Among the most famous uses light weight aluminum nitride porcelains remains in digital packaging, particularly for high-power devices such as shielded entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness enhance in modern-day electronics, efficient warm dissipation ends up being important to make certain integrity and durability. AlN substratums offer an ideal service by incorporating high thermal conductivity with excellent electrical isolation, preventing brief circuits and thermal runaway problems.

Moreover, AlN-based direct bonded copper (DBC) and energetic metal brazed (AMB) substrates are increasingly employed in power module designs for electrical vehicles, renewable energy inverters, and commercial motor drives. Contrasted to conventional alumina or silicon nitride substrates, AlN uses faster heat transfer and far better compatibility with silicon chip coefficients of thermal growth, therefore decreasing mechanical anxiety and boosting general system efficiency. Recurring research aims to enhance the bonding toughness and metallization strategies on AlN surfaces to more expand its application range.

Use in Optoelectronic and High-Temperature Tools

Beyond digital packaging, aluminum nitride porcelains play a crucial function in optoelectronic and high-temperature applications because of their openness to ultraviolet (UV) radiation and thermal stability. AlN is commonly utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications requiring sanitation, picking up, and optical communication. Its wide bandgap and reduced absorption coefficient in the UV range make it an ideal prospect for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.

Additionally, AlN’s capability to function accurately at temperatures going beyond 1000 ° C makes it ideal for usage in sensing units, thermoelectric generators, and elements revealed to severe thermal loads. In aerospace and protection sectors, AlN-based sensing unit bundles are employed in jet engine monitoring systems and high-temperature control units where standard products would certainly fail. Continual advancements in thin-film deposition and epitaxial development methods are increasing the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.


( Aluminum Nitride Ceramics)

Environmental Stability and Long-Term Dependability

An essential factor to consider for any substrate product is its lasting reliability under functional stresses. Light weight aluminum nitride demonstrates superior environmental security contrasted to several other ceramics. It is extremely immune to deterioration from acids, alkalis, and molten steels, guaranteeing resilience in aggressive chemical environments. Nevertheless, AlN is vulnerable to hydrolysis when exposed to dampness at elevated temperatures, which can deteriorate its surface and lower thermal performance.

To mitigate this problem, safety finishings such as silicon nitride (Si six N FOUR), aluminum oxide, or polymer-based encapsulation layers are often related to enhance dampness resistance. Additionally, cautious securing and packaging methods are carried out during device assembly to preserve the stability of AlN substrates throughout their service life. As ecological guidelines become extra rigorous, the non-toxic nature of AlN likewise places it as a recommended choice to beryllium oxide, which postures health and wellness threats during processing and disposal.

Verdict

Light weight aluminum nitride ceramics stand for a class of sophisticated products uniquely fit to resolve the growing demands for reliable thermal management and electrical insulation in high-performance digital and optoelectronic systems. Their extraordinary thermal conductivity, chemical security, and compatibility with semiconductor innovations make them one of the most perfect substrate material for a wide variety of applications– from automobile power modules to deep UV LEDs and high-temperature sensing units. As manufacture innovations continue to develop and economical production techniques develop, the fostering of AlN substratums is expected to rise considerably, driving development in next-generation digital and photonic tools.
