Intro: Key tools in power electronics
Silicon-controlled rectifiers (SCRs), also called thyristors, are semiconductor power tools with a four-layer triple junction structure (PNPN). Given that its intro in the 1950s, SCRs have actually been extensively utilized in commercial automation, power systems, home appliance control and various other areas as a result of their high hold up against voltage, big current lugging ability, rapid feedback and basic control. With the development of innovation, SCRs have actually evolved into several types, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these types are not only shown in the structure and working principle, but also determine their applicability in various application circumstances. This short article will start from a technical point of view, incorporated with details criteria, to deeply evaluate the main distinctions and normal uses these four SCRs.
Unidirectional SCR: Fundamental and steady application core
Unidirectional SCR is the most standard and usual kind of thyristor. Its framework is a four-layer three-junction PNPN plan, including 3 electrodes: anode (A), cathode (K) and entrance (G). It only allows existing to flow in one instructions (from anode to cathode) and switches on after eviction is caused. Once activated, also if eviction signal is removed, as long as the anode current is more than the holding existing (typically much less than 100mA), the SCR remains on.

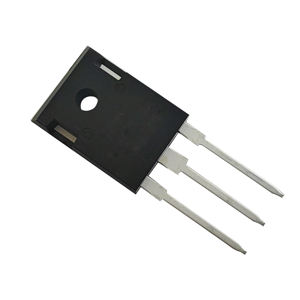

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and existing resistance, with an ahead repeated top voltage (V DRM) of up to 6500V and a rated on-state typical present (ITAV) of up to 5000A. Consequently, it is extensively utilized in DC electric motor control, commercial heating unit, uninterruptible power supply (UPS) rectification components, power conditioning gadgets and other occasions that require continuous transmission and high power processing. Its advantages are easy structure, affordable and high integrity, and it is a core component of many typical power control systems.
Bidirectional SCR (TRIAC): Perfect for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also called TRIAC, can achieve bidirectional conduction in both positive and negative fifty percent cycles. This structure includes 2 anti-parallel SCRs, which allow TRIAC to be caused and turned on at any moment in the air conditioning cycle without transforming the circuit connection approach. The in proportion transmission voltage range of TRIAC is usually ± 400 ~ 800V, the optimum lots current has to do with 100A, and the trigger current is less than 50mA.
Because of the bidirectional conduction features of TRIAC, it is particularly appropriate for air conditioner dimming and speed control in home appliances and customer electronic devices. For example, gadgets such as lamp dimmers, fan controllers, and air conditioner follower speed regulators all count on TRIAC to attain smooth power law. Additionally, TRIAC additionally has a reduced driving power requirement and is suitable for incorporated style, so it has actually been commonly used in smart home systems and tiny devices. Although the power thickness and switching rate of TRIAC are not like those of brand-new power gadgets, its inexpensive and convenient use make it a vital gamer in the field of little and medium power a/c control.
Gate Turn-Off Thyristor (GTO): A high-performance rep of active control
Gate Turn-Off Thyristor (GTO) is a high-performance power tool created on the basis of typical SCR. Unlike average SCR, which can only be turned off passively, GTO can be shut off proactively by applying an adverse pulse current to the gate, therefore achieving even more adaptable control. This feature makes GTO execute well in systems that require frequent start-stop or rapid feedback.

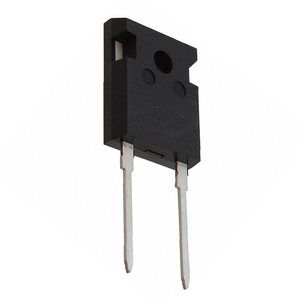

(Thyristor Rectifier)
The technical specifications of GTO show that it has incredibly high power taking care of ability: the turn-off gain is about 4 ~ 5, the optimum operating voltage can get to 6000V, and the optimum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance indications make GTO commonly made use of in high-power circumstances such as electric locomotive grip systems, huge inverters, industrial motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is fairly complex and has high switching losses, its efficiency under high power and high dynamic reaction demands is still irreplaceable.
Light-controlled thyristor (LTT): A trustworthy option in the high-voltage isolation environment
Light-controlled thyristor (LTT) utilizes optical signals rather than electrical signals to set off transmission, which is its greatest function that differentiates it from other sorts of SCRs. The optical trigger wavelength of LTT is typically in between 850nm and 950nm, the action time is determined in split seconds, and the insulation degree can be as high as 100kV or over. This optoelectronic isolation system greatly enhances the system’s anti-electromagnetic disturbance capability and safety.
LTT is mainly utilized in ultra-high voltage direct present transmission (UHVDC), power system relay security gadgets, electro-magnetic compatibility security in clinical equipment, and army radar communication systems and so on, which have extremely high demands for safety and stability. As an example, lots of converter terminals in China’s “West-to-East Power Transmission” project have actually adopted LTT-based converter valve components to make sure steady operation under extremely high voltage problems. Some advanced LTTs can likewise be integrated with gate control to achieve bidirectional conduction or turn-off features, additionally broadening their application array and making them a perfect option for resolving high-voltage and high-current control issues.
