1. Fundamental Framework and Material Structure
1.1 The Nanoscale Architecture of Aerogels

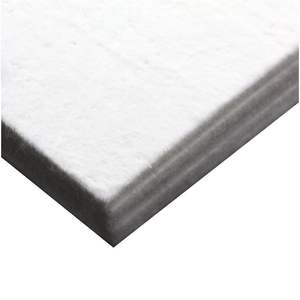

(Aerogel Blanket)
Aerogel coverings are sophisticated thermal insulation materials built upon an one-of-a-kind nanostructured structure, where a strong silica or polymer network extends an ultra-high porosity volume– commonly going beyond 90% air.
This structure originates from the sol-gel process, in which a fluid precursor (typically tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to develop a wet gel, complied with by supercritical or ambient pressure drying out to remove the fluid without breaking down the fragile porous network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in diameter) forming pores on the scale of 10– 50 nm, small sufficient to subdue air particle movement and hence lessen conductive and convective warm transfer.
This sensation, called Knudsen diffusion, drastically reduces the reliable thermal conductivity of the material, usually to worths between 0.012 and 0.018 W/(m · K) at room temperature level– amongst the lowest of any kind of solid insulator.
Despite their low density (as reduced as 0.003 g/cm FIVE), pure aerogels are naturally brittle, demanding reinforcement for functional use in adaptable blanket type.
1.2 Reinforcement and Compound Style
To overcome fragility, aerogel powders or monoliths are mechanically integrated right into coarse substrates such as glass fiber, polyester, or aramid felts, developing a composite “blanket” that keeps extraordinary insulation while getting mechanical toughness.
The enhancing matrix provides tensile strength, adaptability, and dealing with longevity, enabling the material to be reduced, curved, and mounted in complicated geometries without substantial efficiency loss.
Fiber web content typically ranges from 5% to 20% by weight, meticulously stabilized to minimize thermal connecting– where fibers carry out warmth throughout the covering– while guaranteeing structural stability.
Some progressed styles include hydrophobic surface area therapies (e.g., trimethylsilyl teams) to prevent wetness absorption, which can deteriorate insulation performance and promote microbial development.
These adjustments allow aerogel coverings to maintain stable thermal properties even in moist environments, broadening their applicability beyond controlled laboratory problems.
2. Production Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The manufacturing of aerogel blankets begins with the formation of a damp gel within a coarse mat, either by fertilizing the substrate with a liquid forerunner or by co-forming the gel and fiber network all at once.
After gelation, the solvent should be eliminated under problems that stop capillary stress from falling down the nanopores; traditionally, this called for supercritical CO two drying, a costly and energy-intensive procedure.
Recent advancements have enabled ambient pressure drying out through surface adjustment and solvent exchange, substantially decreasing production costs and making it possible for continual roll-to-roll production.
In this scalable procedure, long rolls of fiber mat are constantly coated with forerunner solution, gelled, dried, and surface-treated, enabling high-volume result ideal for industrial applications.
This change has actually been critical in transitioning aerogel blankets from particular niche laboratory materials to readily sensible products made use of in building and construction, power, and transportation industries.
2.2 Quality Control and Performance Consistency
Ensuring consistent pore framework, regular density, and trustworthy thermal efficiency throughout big manufacturing sets is important for real-world release.
Makers utilize strenuous quality control actions, including laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric analysis for wetness resistance.
Batch-to-batch reproducibility is vital, especially in aerospace and oil & gas industries, where failing because of insulation malfunction can have severe repercussions.
Additionally, standardized screening according to ASTM C177 (heat flow meter) or ISO 9288 guarantees exact coverage of thermal conductivity and makes it possible for reasonable comparison with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Feature
3.1 Superior Insulation Throughout Temperature Ranges
Aerogel blankets display outstanding thermal efficiency not just at ambient temperature levels yet additionally across extreme arrays– from cryogenic problems listed below -100 ° C to heats exceeding 600 ° C, depending on the base material and fiber kind.
At cryogenic temperatures, traditional foams might fracture or shed performance, whereas aerogel coverings continue to be adaptable and maintain low thermal conductivity, making them perfect for LNG pipes and tank.
In high-temperature applications, such as industrial furnaces or exhaust systems, they provide efficient insulation with lowered density compared to bulkier choices, conserving space and weight.
Their low emissivity and capacity to reflect induction heat additionally boost performance in radiant barrier arrangements.
This broad functional envelope makes aerogel blankets uniquely flexible amongst thermal management services.
3.2 Acoustic and Fireproof Qualities
Beyond thermal insulation, aerogel coverings show significant sound-dampening homes as a result of their open, tortuous pore framework that dissipates acoustic power with thick losses.
They are increasingly made use of in vehicle and aerospace cabins to reduce sound pollution without adding significant mass.
In addition, most silica-based aerogel blankets are non-combustible, accomplishing Course A fire scores, and do not release hazardous fumes when revealed to flame– important for developing safety and public framework.
Their smoke density is incredibly reduced, enhancing exposure during emergency situation emptyings.
4. Applications in Industry and Arising Technologies
4.1 Power Effectiveness in Building and Industrial Equipment
Aerogel coverings are changing power performance in style and commercial design by enabling thinner, higher-performance insulation layers.
In buildings, they are utilized in retrofitting historical frameworks where wall surface density can not be boosted, or in high-performance façades and home windows to lessen thermal connecting.
In oil and gas, they insulate pipelines lugging warm liquids or cryogenic LNG, minimizing power loss and stopping condensation or ice formation.
Their light-weight nature likewise reduces architectural lots, especially valuable in overseas platforms and mobile systems.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings protect spacecraft from extreme temperature level fluctuations during re-entry and guard delicate tools from thermal cycling in space.
NASA has actually employed them in Mars vagabonds and astronaut fits for passive thermal regulation.
Automotive makers incorporate aerogel insulation right into electric automobile battery packs to prevent thermal runaway and enhance safety and security and effectiveness.
Customer products, including outside garments, shoes, and outdoor camping equipment, now include aerogel cellular linings for premium heat without mass.
As manufacturing prices decrease and sustainability enhances, aerogel blankets are positioned to become traditional services in global initiatives to reduce energy intake and carbon emissions.
To conclude, aerogel coverings stand for a merging of nanotechnology and useful design, supplying unrivaled thermal performance in an adaptable, resilient layout.
Their capability to save energy, space, and weight while preserving safety and security and ecological compatibility positions them as crucial enablers of sustainable technology across varied sectors.
