1. Product Basics and Microstructural Style
1.1 Make-up and Crystallographic Security of Alumina

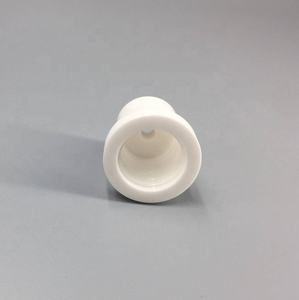

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O TWO), specifically in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed framework, offering phenomenal thermal security, chemical inertness, and mechanical toughness at elevated temperatures.
High-purity alumina (usually 95– 99.9% Al Two O ₃) is preferred for nozzle applications because of its minimal pollutant content, which reduces grain boundary weakening and enhances resistance to thermal and chemical degradation.
The microstructure, containing fine, equiaxed grains, is crafted throughout sintering to decrease porosity and make the most of thickness, directly affecting the nozzle’s erosion resistance and structural integrity under high-velocity liquid flow.
Ingredients such as MgO are often introduced in trace amounts to prevent unusual grain development throughout sintering, ensuring an uniform microstructure that supports lasting reliability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Efficiency
Alumina ceramics show a Vickers firmness going beyond 1800 HV, making them highly resistant to rough wear from particulate-laden liquids, a crucial quality in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles preserve dimensional security under high-pressure operation, generally varying from 100 to 400 MPa in commercial systems.
Thermally, alumina preserves its mechanical residential properties as much as 1600 ° C, with a low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that gives superb resistance to thermal shock– essential when exposed to fast temperature changes throughout start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without generating thermal gradients that might cause splitting, stabilizing insulation and warm management requirements.
2. Production Processes and Geometric Precision
2.1 Forming and Sintering Methods for Nozzle Fabrication
The production of alumina ceramic nozzles starts with high-purity alumina powder, which is processed right into a green body using approaches such as chilly isostatic pressing (CIP), injection molding, or extrusion, depending on the wanted geometry and set size.
( Alumina Ceramic Nozzles)
Cold isostatic pressing uses uniform stress from all instructions, yielding an uniform thickness distribution vital for minimizing problems throughout sintering.
Shot molding is utilized for complicated nozzle shapes with interior tapers and great orifices, enabling high dimensional accuracy and reproducibility in mass production.
After shaping, the environment-friendly compacts undertake a two-stage thermal treatment: debinding to remove natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to attain near-theoretical thickness via solid-state diffusion.
Accurate control of sintering environment and heating/cooling prices is essential to prevent warping, cracking, or grain coarsening that might jeopardize nozzle efficiency.
2.2 Machining, Sprucing Up, and Quality Control
Post-sintering, alumina nozzles typically call for accuracy machining to attain tight resistances, specifically in the orifice region where circulation characteristics are most conscious surface area coating and geometry.
Ruby grinding and washing are utilized to refine inner and exterior surfaces, attaining surface area roughness values listed below 0.1 µm, which decreases circulation resistance and stops particle build-up.
The orifice, usually ranging from 0.3 to 3.0 mm in size, need to be without micro-cracks and chamfers to make certain laminar flow and regular spray patterns.
Non-destructive testing techniques such as optical microscopy, X-ray assessment, and stress biking tests are employed to confirm architectural honesty and efficiency uniformity prior to deployment.
Custom-made geometries, consisting of convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole arrays for fan spray patterns, are progressively produced utilizing innovative tooling and computer-aided design (CAD)-driven manufacturing.
3. Functional Advantages Over Alternative Nozzle Products
3.1 Superior Erosion and Deterioration Resistance
Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina displays far better resistance to abrasive wear, particularly in settings including silica sand, garnet, or other tough abrasives used in surface preparation and cutting.
Steel nozzles weaken swiftly because of micro-fracturing and plastic deformation, needing constant replacement, whereas alumina nozzles can last 3– 5 times much longer, substantially decreasing downtime and functional expenses.
Additionally, alumina is inert to the majority of acids, alkalis, and solvents, making it suitable for chemical splashing, etching, and cleaning procedures where metal elements would certainly rust or pollute the liquid.
This chemical stability is specifically useful in semiconductor manufacturing, pharmaceutical processing, and food-grade applications needing high pureness.
3.2 Thermal and Electric Insulation Characteristic
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it perfect for usage in electrostatic spray layer systems, where it prevents charge leakage and makes sure uniform paint atomization.
Its thermal insulation capability permits safe operation in high-temperature splashing atmospheres, such as flame splashing or thermal cleaning, without warm transfer to surrounding parts.
Unlike steels, alumina does not catalyze unwanted chemical reactions in responsive liquid streams, protecting the honesty of delicate solutions.
4. Industrial Applications and Technical Influence
4.1 Roles in Abrasive Jet Machining and Surface Treatment
Alumina ceramic nozzles are crucial in unpleasant blowing up systems for corrosion elimination, paint stripping, and surface area texturing in automobile, aerospace, and building and construction sectors.
Their capability to keep a regular orifice size over extended usage ensures uniform rough velocity and impact angle, directly affecting surface finish high quality and procedure repeatability.
In rough waterjet cutting, alumina focusing tubes guide the high-pressure water-abrasive combination, holding up against erosive pressures that would quickly degrade softer materials.
4.2 Usage in Additive Production, Spray Finishing, and Liquid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles direct high-temperature gas flows and molten particles onto substratums, taking advantage of their thermal shock resistance and dimensional stability.
They are additionally utilized in precision spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance ensures lasting dosing precision.
In 3D printing, particularly in binder jetting and product extrusion, alumina nozzles provide great powders or thick pastes with very little blocking or wear.
Emerging applications include microfluidic systems and lab-on-a-chip tools, where miniaturized alumina components provide sturdiness and biocompatibility.
In recap, alumina ceramic nozzles represent an essential junction of products science and commercial design.
Their remarkable combination of solidity, thermal security, and chemical resistance allows dependable efficiency in some of one of the most demanding liquid handling settings.
As industrial procedures push towards higher stress, finer tolerances, and longer service periods, alumina porcelains continue to establish the standard for long lasting, high-precision circulation control components.
