1. Material Principles and Microstructural Characteristics
1.1 Structure and Crystallographic Properties of Al ₂ O THREE
(Alumina Ceramic Balls， Alumina Ceramic Balls)

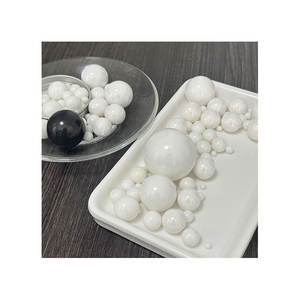

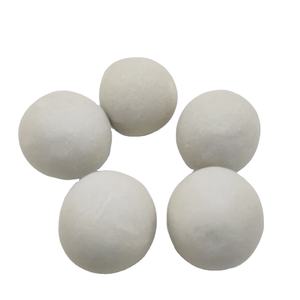

Alumina ceramic spheres are spherical elements produced from light weight aluminum oxide (Al ₂ O ₃), a fully oxidized, polycrystalline ceramic that displays remarkable hardness, chemical inertness, and thermal stability.
The key crystalline phase in high-performance alumina spheres is α-alumina, which takes on a corundum-type hexagonal close-packed structure where aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion lattice, providing high latticework energy and resistance to phase change.
Industrial-grade alumina balls commonly include 85% to 99.9% Al Two O FOUR, with purity directly affecting mechanical strength, wear resistance, and rust performance.
High-purity grades (≥ 95% Al Two O SIX) are sintered to near-theoretical density (> 99%) using innovative techniques such as pressureless sintering or hot isostatic pushing, reducing porosity and intergranular problems that could serve as stress and anxiety concentrators.
The resulting microstructure contains penalty, equiaxed grains consistently distributed throughout the quantity, with grain dimensions generally ranging from 1 to 5 micrometers, enhanced to stabilize toughness and firmness.
1.2 Mechanical and Physical Building Profile
Alumina ceramic balls are renowned for their severe solidity– gauged at around 1800– 2000 HV on the Vickers scale– surpassing most steels and rivaling tungsten carbide, making them optimal for wear-intensive settings.
Their high compressive stamina (up to 2500 MPa) makes sure dimensional stability under load, while reduced flexible contortion boosts accuracy in rolling and grinding applications.
Regardless of their brittleness about steels, alumina spheres exhibit exceptional crack toughness for porcelains, specifically when grain growth is controlled throughout sintering.
They keep architectural stability throughout a vast temperature level variety, from cryogenic problems approximately 1600 ° C in oxidizing atmospheres, much surpassing the thermal limits of polymer or steel equivalents.
Furthermore, their low thermal development coefficient (~ 8 × 10 ⁻⁶/ K) decreases thermal shock vulnerability, enabling use in swiftly rising and fall thermal environments such as kilns and warmth exchangers.
2. Production Processes and Quality Control
()
2.1 Forming and Sintering Techniques
The production of alumina ceramic spheres starts with high-purity alumina powder, commonly derived from calcined bauxite or chemically precipitated hydrates, which is grated to achieve submicron fragment dimension and narrow size circulation.
Powders are then developed into round eco-friendly bodies making use of approaches such as extrusion-spheronization, spray drying out, or ball developing in revolving pans, depending upon the wanted size and batch range.
After shaping, environment-friendly balls undertake a binder burnout stage adhered to by high-temperature sintering, usually in between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.
Precise control of sintering ambience (air or managed oxygen partial stress), home heating rate, and dwell time is important to accomplishing consistent shrinking, round geometry, and marginal interior flaws.
For ultra-high-performance applications, post-sintering treatments such as warm isostatic pressing (HIP) may be applied to remove residual microporosity and better boost mechanical integrity.
2.2 Precision Finishing and Metrological Verification
Complying with sintering, alumina rounds are ground and polished using diamond-impregnated media to accomplish tight dimensional tolerances and surface area coatings similar to bearing-grade steel rounds.
Surface roughness is usually reduced to less than 0.05 μm Ra, decreasing friction and put on in vibrant contact circumstances.
Critical high quality parameters consist of sphericity (discrepancy from best satiation), size variation, surface stability, and density harmony, all of which are measured making use of optical interferometry, coordinate measuring machines (CMM), and laser profilometry.
International standards such as ISO 3290 and ANSI/ABMA define resistance grades for ceramic spheres used in bearings, making sure interchangeability and performance uniformity across producers.
Non-destructive screening techniques like ultrasonic inspection or X-ray microtomography are employed to discover interior splits, spaces, or additions that might endanger long-term integrity.
3. Functional Advantages Over Metallic and Polymer Counterparts
3.1 Chemical and Rust Resistance in Harsh Environments
Among the most substantial benefits of alumina ceramic spheres is their exceptional resistance to chemical strike.
They stay inert in the existence of solid acids (other than hydrofluoric acid), antacid, organic solvents, and saline services, making them appropriate for use in chemical processing, pharmaceutical production, and marine applications where steel parts would corrode swiftly.
This inertness stops contamination of delicate media, an important consider food handling, semiconductor fabrication, and biomedical equipment.
Unlike steel rounds, alumina does not generate rust or metal ions, guaranteeing process purity and lowering upkeep regularity.
Their non-magnetic nature additionally extends applicability to MRI-compatible gadgets and electronic production line where magnetic interference should be prevented.
3.2 Use Resistance and Long Life Span
In unpleasant or high-cycle atmospheres, alumina ceramic spheres exhibit wear prices orders of magnitude lower than steel or polymer alternatives.
This phenomenal sturdiness equates right into extensive solution periods, reduced downtime, and lower complete price of ownership regardless of greater first procurement costs.
They are extensively utilized as grinding media in ball mills for pigment diffusion, mineral handling, and nanomaterial synthesis, where their inertness stops contamination and their hardness makes sure reliable particle size reduction.
In mechanical seals and shutoff parts, alumina balls keep tight resistances over millions of cycles, withstanding disintegration from particulate-laden liquids.
4. Industrial and Arising Applications
4.1 Bearings, Shutoffs, and Liquid Handling Systems
Alumina ceramic spheres are indispensable to hybrid ball bearings, where they are paired with steel or silicon nitride races to combine the reduced density and corrosion resistance of porcelains with the toughness of steels.
Their low density (~ 3.9 g/cm TWO, regarding 40% lighter than steel) minimizes centrifugal packing at high rotational speeds, enabling faster procedure with reduced warmth generation and boosted energy performance.
Such bearings are utilized in high-speed spindles, dental handpieces, and aerospace systems where integrity under severe problems is paramount.
In fluid control applications, alumina balls function as check shutoff aspects in pumps and metering devices, specifically for aggressive chemicals, high-purity water, or ultra-high vacuum cleaner systems.
Their smooth surface area and dimensional security ensure repeatable securing performance and resistance to galling or taking.
4.2 Biomedical, Energy, and Advanced Innovation Utilizes
Past standard industrial duties, alumina ceramic balls are locating usage in biomedical implants and analysis tools because of their biocompatibility and radiolucency.
They are utilized in synthetic joints and oral prosthetics where wear particles should be decreased to prevent inflammatory responses.
In energy systems, they operate as inert tracers in tank characterization or as heat-stable parts in focused solar energy and gas cell assemblies.
Research is likewise exploring functionalized alumina spheres for catalytic assistance, sensor components, and precision calibration standards in assessment.
In summary, alumina ceramic spheres exhibit exactly how innovative porcelains bridge the space between structural effectiveness and practical accuracy.
Their distinct mix of hardness, chemical inertness, thermal security, and dimensional accuracy makes them crucial in demanding engineering systems across varied markets.
As manufacturing techniques remain to enhance, their performance and application range are anticipated to expand further right into next-generation innovations.
